The Motorola APX 6000XE M2.5 7/800 MHz BN P25 portable radio features 1,000 channels, P25 Phase 1/2, GPS, Bluetooth, rugged IP68 protection and advanced professional communication capabilities.

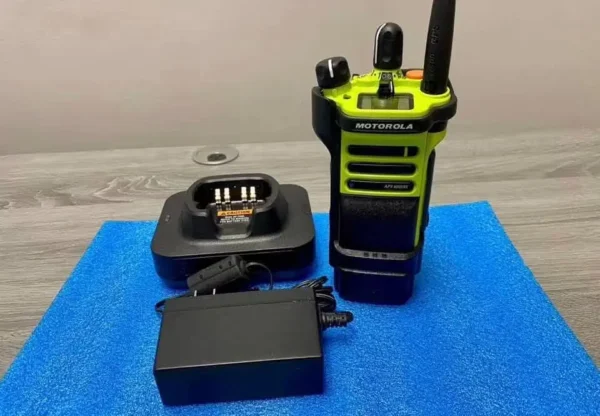

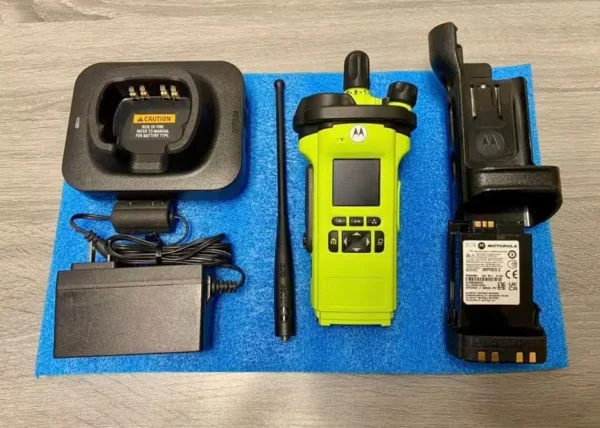

Motorola APX 6000XE M2.5 7/800 MHz BN P25 Portable Radio
The Motorola APX 6000XE M2.5 7/800 MHz BN P25 portable radio is a rugged, professional-grade two-way radio designed for public safety, fire, EMS, government and other demanding communication environments. Part of Motorola’s APX Extreme Series, the APX 6000XE combines P25 digital communications, durable construction, advanced audio, GPS, Bluetooth and mission-critical features in a compact single-band portable radio.
The M2.5 configuration provides a full-color display, backlit keypad, navigation controls and up to 1,000 channels, making it well suited for organizations that need access to multiple channels and communication zones. Motorola’s data sheet identifies the 7/800 MHz M2.5 model as H98UCF9PW6BN.
7/800 MHz P25 Digital Radio
The APX 6000XE 7/800 MHz is designed for compatible APCO P25 communication systems. It supports P25 Phase 1 FDMA and Phase 2 TDMA, along with conventional and trunked operation. The platform also supports SmartNet and SmartZone systems, depending on configuration and programming.
This makes the radio an excellent choice for agencies and organizations operating compatible 700/800 MHz P25 radio systems where reliable digital communications and interoperability are important.
Rugged APX Extreme Design
The APX 6000XE was built specifically for users who operate in challenging environments. Its aggressive T-shaped design provides a secure grip, including when users are wearing gloves or working with wet hands.
The radio features an aluminum-alloy endoskeleton, tempered-glass display protection, dual-latch battery retention and an IP68 rating, allowing the enhanced model to withstand up to 2 meters of water submersion for up to 4 hours. Motorola also specifies MIL-STD testing for demanding operating environments.
M2.5 Display and Keypad
The M2.5 model offers a professional user interface with:
Full bitmap color LCD display
4 lines of text
Two lines of icons
Backlit keypad
Three soft keys
Four-direction navigation key
Home and Data buttons
Up to 1,000 channels
The radio also includes a large PTT button, oversized controls, orange emergency button and programmable side buttons for quick access to important functions.
Advanced Audio for High-Noise Environments
Clear communication is especially important for firefighters, emergency personnel and other first responders. The APX 6000XE platform incorporates Motorola’s advanced audio technologies, while the optional Adaptive Audio Engine can provide adaptive noise suppression, adaptive gain control, speaker equalization, windporting and adaptive dual-sided operation.
These features are designed to help users communicate more effectively when operating around engines, machinery, alarms, traffic and other high-noise environments.
GPS, Bluetooth and Connectivity
Depending on configuration, the APX 6000XE supports professional connectivity and location features including:
Integrated GPS/GLONASS
Mission Critical Wireless Bluetooth 4.0
Wi-Fi 802.11 b/g/n as an optional feature
ASTRO 25 Integrated Voice & Data
Voice announcements
Radio profiles
Intelligent lighting
Text messaging
Programming Over Project 25 (OTAP), where enabled
Over-the-air rekeying (OTAR), where enabled
P25 authentication, where enabled
Security and Encryption
The APX 6000XE supports professional communications security features. Motorola lists AES, DES and ADP encryption capabilities, with multiple-key and multi-algorithm functionality available depending on the radio’s installed options and configuration.
The platform can also support OTAR and P25 authentication on appropriately configured radios. Encryption capabilities should always be verified against the individual radio’s feature set rather than assumed from the APX 6000XE platform alone.
Key Features
Motorola APX 6000XE P25 portable radio
M2.5 configuration
7/800 MHz operation
Model: H98UCF9PW6BN
APCO P25 Phase 1 FDMA
P25 Phase 2 TDMA
Conventional and trunked operation
SmartNet and SmartZone compatibility
Up to 1,000 channels
Full-color LCD display
Backlit keypad
GPS/GLONASS
Bluetooth 4.0
ASTRO 25 Integrated Voice & Data
IP68 protection
MIL-STD rugged construction
Aluminum-alloy endoskeleton
Large glove-friendly controls
Emergency button
Intelligent lighting
Voice announcements
IMPRES 2 battery platform
Encryption capabilities depending on configuration
Optional Wi-Fi and advanced audio features
Ideal Applications
The Motorola APX 6000XE M2.5 7/800 MHz is particularly suited for:
Fire departments
Police and law enforcement
EMS and emergency services
Public safety agencies
Government organizations
Security teams
Transportation
Utilities
Critical infrastructure
Industrial operations
Its rugged construction and glove-friendly controls make it especially appropriate for firefighters and first responders working in demanding environments. Motorola originally positioned the APX 6000XE specifically for fire and EMS users operating under extreme conditions.
Important Compatibility Information
Before purchasing a Motorola APX 6000XE 7/800 MHz P25 radio, verify that the radio is compatible with your communication system. P25 radios can have different software versions, flashcodes, feature entitlements, encryption options and programming configurations.
The radio may require professional programming before it can operate on a specific P25 system. Buyers should verify the required frequencies, system type, talkgroups, encryption requirements and feature configuration with their radio administrator or qualified programming technician.
If purchasing a used APX 6000XE, we also recommend confirming the exact model number, condition, battery, accessories, software configuration and installed features before deployment.
Why Buy a Motorola APX 6000XE?
For organizations searching for a Motorola APX 6000XE 7/800 MHz P25 radio, this model offers a strong combination of ruggedness, usability and professional P25 capabilities. The M2.5 configuration adds a full-color display and keypad while retaining the durable XE design intended for demanding field environments.
The APX 6000XE has since been superseded by Motorola’s APX 6000XE P25 Enhanced Portable Radio, but the original model remains a sought-after option in the used professional radio market.
