Motorola APX 6000XE M3.5 UHF Range 1 P25 portable radio with 380–470 MHz coverage, up to 1,000 channels, P25 Phase 1/2, GPS, Bluetooth, advanced audio and rugged IP68 protection.

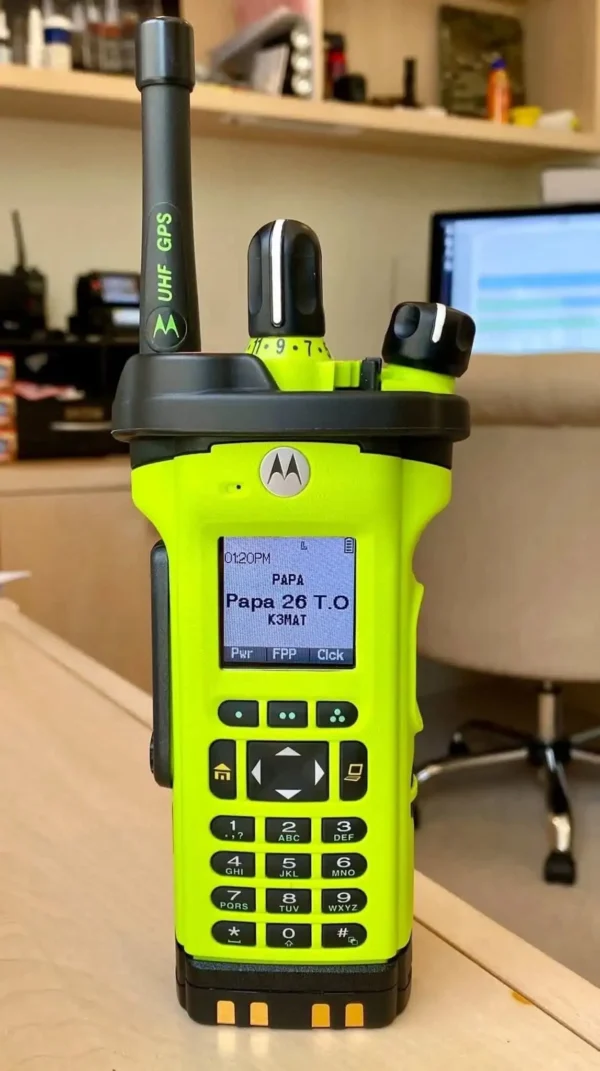

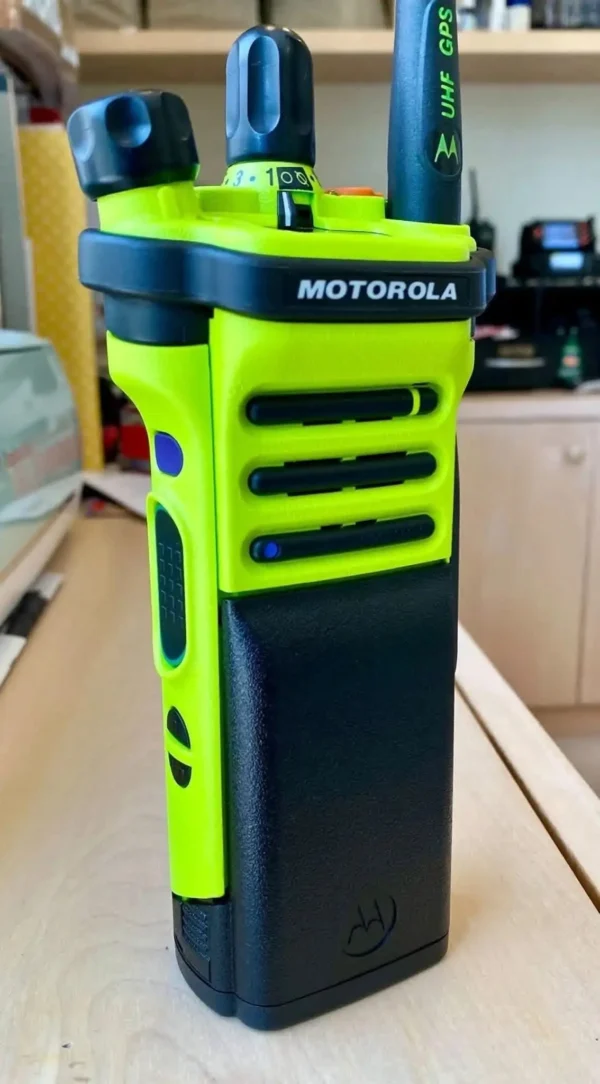

Motorola APX 6000XE M3.5 UHF Range 1 P25 Portable Two-Way Radio
The Motorola APX 6000XE M3.5 UHF Range 1 P25 portable two-way radio is a rugged professional communication solution designed for firefighters, EMS personnel, law enforcement, public safety agencies, government organizations and other demanding field environments.
Built for users who need reliable communication in challenging conditions, the APX 6000XE combines P25 Phase 1 and Phase 2 digital technology, advanced audio, GPS/GLONASS, Bluetooth, rugged construction and professional-grade controls in a compact single-band portable radio.
This UHF Range 1 version operates across 380–470 MHz, while the M3.5 configuration provides a full-color display, backlit keypad, advanced controls and capacity for up to 1,000 channels. Motorola lists the M3.5 UHF Range 1 model as H98QDH9PW7BN.
UHF Range 1 P25 Digital Communications
The Motorola APX 6000XE M3.5 UHF Range 1 supports APCO P25 Phase 1 FDMA and Phase 2 TDMA, making it suitable for compatible professional and public-safety radio systems.
The platform supports conventional P25 operation as well as compatible ASTRO 25, SmartNet and SmartZone trunking systems. Exact functionality depends on the radio’s software, programming and installed feature options.
With its 380–470 MHz UHF Range 1 coverage, this radio is designed for organizations whose communication infrastructure operates within the UHF R1 band.
M3.5 Configuration with Advanced Controls
The M3.5 configuration is designed for users who need extensive channel access and a more advanced user interface.
It includes:
Full bitmap color LCD display
Four lines of text
Two lines of icons
Backlit keypad
Three soft keys
Four-direction navigation key
4 × 3 keypad
Home and Data buttons
Up to 1,000 channels
Three programmable side buttons
Large PTT button
Orange emergency button
The M3.5 model is particularly useful for organizations managing multiple channels, talkgroups and radio systems.
Rugged APX Extreme Construction
The APX 6000XE was engineered for demanding environments where durability and ease of operation are essential. Its distinctive T-shaped design provides a secure grip and large controls that can be operated while wearing gloves.
The enhanced APX 6000XE platform features IP68 protection and a rugged construction designed for extreme operating conditions. Motorola also specifies MIL-STD environmental testing for the platform.
The radio is therefore well suited to users working around water, dust, machinery, emergency equipment and other challenging environments.
Advanced Audio Performance
Clear voice communication is critical in noisy environments. The APX 6000XE incorporates Motorola’s professional audio technologies, including dual microphones and an Extreme Audio profile.
Depending on configuration, the enhanced platform can also provide adaptive audio features designed to improve communication in high-noise environments. These include noise suppression, adaptive gain control, speaker equalization and windporting.
This makes the APX 6000XE particularly suitable for firefighters, emergency responders and industrial professionals working around engines, alarms, traffic and heavy machinery.
Motorola APX 6000XE M3.5 UHF Range 1 Specifications
The Motorola APX 6000XE M3.5 UHF Range 1 provides:
Specification
Details
Radio
Motorola APX 6000XE
Configuration
M3.5
Band
UHF Range 1
Frequency Range
380–470 MHz
Model Number
H98QDH9PW7BN
Channel Capacity
Up to 1,000
Digital Technology
APCO P25 Phase 1 FDMA / Phase 2 TDMA
Channel Spacing
25 / 20 / 12.5 kHz
RF Output
Up to 5 W, depending on configuration
Display
Full-color LCD
Keypad
Backlit 4 × 3 keypad
GPS
GPS/GLONASS, depending on configuration
Bluetooth
Mission Critical Wireless Bluetooth
Protection
IP68 on enhanced platform
Battery
Motorola IMPRES 2 Li-Ion options
Motorola’s documentation specifies 380–470 MHz for UHF Range 1 and an adjustable RF output of 1–5 W for the enhanced platform.
GPS, Bluetooth and Professional Connectivity
Depending on the radio’s configuration, the APX 6000XE can provide professional connectivity and location features including:
Integrated GPS/GLONASS
Mission Critical Wireless Bluetooth
ASTRO 25 Integrated Voice & Data
Voice announcements
Intelligent lighting
Radio profiles
Text messaging
Programming Over Project 25
Over-the-air rekeying
P25 authentication
Optional Wi-Fi on supported configurations
These features can help organizations integrate portable radios into larger professional communication systems.
Security and Encryption
The Motorola APX 6000XE M3.5 UHF Range 1 platform supports a range of professional security capabilities. Motorola documentation lists encryption support including AES, DES, DES-XL, DES-OFB and Advanced Digital Privacy (ADP), depending on the individual radio configuration and installed options.
For a used radio, customers should always verify the actual installed encryption features, software configuration and key-management capabilities rather than assuming every APX 6000XE includes every available security option.
Ideal Applications
The Motorola APX 6000XE M3.5 UHF Range 1 is suitable for organizations and professionals operating compatible UHF P25 communication systems, including:
Fire departments
Police and law enforcement
EMS and emergency services
Public safety agencies
Government organizations
Security teams
Utilities
Transportation
Industrial operations
Critical infrastructure
Search and rescue
Its rugged construction, glove-friendly controls and advanced audio make it especially well suited to demanding public-safety environments.
Important Programming and Compatibility Information
Before purchasing a Motorola APX 6000XE UHF Range 1, verify compatibility with your existing communication system.
P25 radios can differ in:
Frequency configuration
Software version

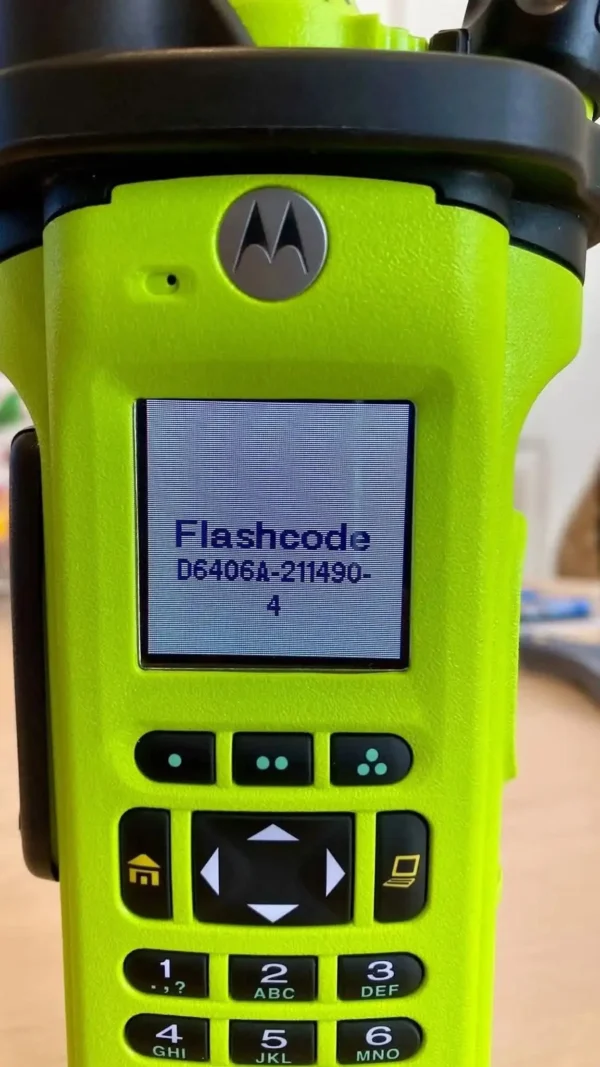

Flashcode
Feature entitlements
Encryption options
Talkgroups
Trunking capabilities
Programming
Firmware
The radio may require professional programming before it can operate on a customer’s specific P25 system. Buyers should verify frequencies, talkgroups, system type and required features with their radio administrator or qualified radio technician.
For used equipment, it is also important to confirm the exact model number, physical condition, battery condition, accessories and installed features before deployment.
Why Choose the Motorola APX 6000XE M3.5 UHF R1?
For customers searching for a Motorola APX 6000XE UHF Range 1 P25 radio, the M3.5 configuration offers a powerful combination of rugged construction, advanced P25 capabilities, professional audio and an intuitive color-display/keypad interface.
With 380–470 MHz coverage, up to 1,000 channels, P25 Phase 1/2, GPS/GLONASS, Bluetooth and rugged IP68 protection, it is a strong option for organizations requiring professional portable communications on compatible UHF P25 systems.
Note: Exact features and capabilities vary by radio configuration, software, flashcode and installed options. Always verify the specific unit before purchase and deployment.
