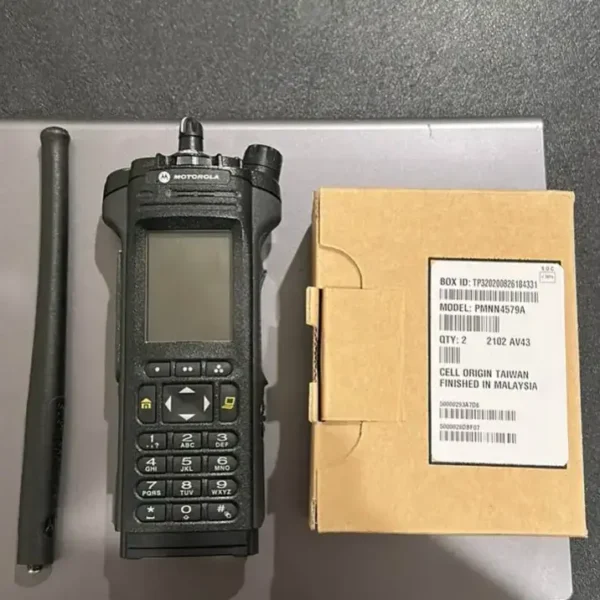

Motorola APX 7000 UHF R2 700/800 M3.5 P25 Portable Radio

The Motorola APX 7000 UHF R2 700/800 M3.5 is a professional-grade P25 portable two-way radio built for users who need dependable communications, excellent audio, rugged performance, and interoperability across demanding public-safety and professional communication environments.

This APX 7000 configuration combines UHF Range 2 (450–520 MHz) with 700/800 MHz (764–870 MHz) capability, making it an excellent choice for organizations operating across multiple frequency bands. Motorola designed the APX 7000 platform around mission-critical communications, with support for both FDMA and P25 Phase 2 TDMA, integrated GPS, advanced audio features, and a rugged design intended for demanding field use.

Whether you’re replacing aging radios, expanding an existing Motorola APX fleet, or looking for a dependable used P25 radio, the APX 7000 remains a highly capable platform.

Display and Non-Display Configurations

The APX 7000 family is available in different configurations, making it possible to select the radio style that best fits your operation.

APX 7000 M3.5 Dual Display

The Model 3.5 Dual Display version features:

• Large full-color display
• Top display
• Full 4×3 keypad
• 3 soft keys
• 4-direction navigation key
• Home and Data buttons
• Multi-color backlighting
• Up to 3,000 channels
• GPS capability

The large color display provides convenient access to channel, zone, menu, messaging, and radio-status information.

APX 7000 Top-Display / Non-Keypad Version

For users who prefer a simpler interface, the APX 7000 is also available in a top-display configuration.

This version includes:

• 8-character top display
• Icon display
• No full keypad
• Multi-color backlight
• Up to 1,200 channels
• GPS capability

The top-display version is well suited for users who want the rugged APX 7000 platform without the larger keypad and color-screen interface.

Please verify the exact display configuration when ordering, as APX 7000 radios can vary by model and configuration.

UHF R2 + 700/800 MHz Capability

This configuration is particularly useful for organizations that require communication across UHF Range 2 and 700/800 MHz systems.

Motorola specifications identify UHF Range 2 as 450–520 MHz and the 700/800 MHz band as approximately 764–870 MHz, depending on the specific radio configuration.

The APX 7000 platform was designed to provide multi-band interoperability, allowing compatible configurations to operate across two of Motorola’s supported frequency bands.

P25 Digital Radio Performance

The APX 7000 is a Project 25 (P25) digital radio designed for professional and mission-critical communication applications.

It supports modern digital communication capabilities including P25 Phase 2 TDMA, which can provide greater spectrum efficiency and additional voice capacity on compatible systems.

For organizations already using an ASTRO 25/P25 radio system, the APX 7000 can be an attractive option when properly configured and programmed for the required system.

Built for Demanding Environments

The APX 7000 was engineered around the needs of first responders and other professionals who require a radio that can withstand demanding field conditions.

Its design includes a large push-to-talk button, optimized T-grip, emergency button, programmable controls, intelligent lighting, and a high-output speaker designed to improve voice intelligibility.

The radio also incorporates dual-microphone noise suppression and Motorola’s audio technologies to help users communicate in noisy environments.

GPS, Encryption and Advanced Features

Depending on the exact flashcode and software configuration, APX 7000 radios can support advanced capabilities such as:

• Integrated GPS
• P25 digital voice
• P25 Phase 2 TDMA
• Advanced Digital Privacy (ADP)
• AES encryption
• DES encryption
• Text messaging
• Voice announcement
• Over-the-Air Programming (OTAP)
• Over-the-Air Rekeying (OTAR)
• Bluetooth accessories

Motorola documentation lists encryption options including AES, DES, DES-XL, DES-OFB and ADP, although the features available on an individual radio depend on its specific options, flashcode, firmware and programming.

Why Choose a Used Motorola APX 7000?

A properly tested used Motorola APX 7000 can provide many of the capabilities professional users need without the cost of purchasing an entirely new radio fleet.

At Used Moto Radio, used radios can be a practical option for organizations looking to:

• Expand an existing Motorola radio fleet
• Replace damaged or aging APX radios
• Maintain spare radios
• Outfit security teams
• Support public-safety communications
• Build a P25-compatible radio fleet
• Add UHF and 700/800 MHz capability

Each radio should be evaluated based on its model number, band split, flashcode, firmware, battery condition, programming and installed options before purchase.

Technical Specifications

Specification	Motorola APX 7000
Radio Type	Portable two-way radio
Radio Family	Motorola APX
Platform	P25 / ASTRO 25
UHF R2	450–520 MHz
700/800 MHz	Approximately 764–870 MHz
Digital Technology	P25
TDMA	P25 Phase 2
GPS	Integrated
Display Version	Model 3.5 Dual Display
Top-Display Version	Model 1.5
M3.5 Channel Capacity	Up to 3,000
Top-Display Capacity	Up to 1,200
Keypad	M3.5: Full keypad; Top Display: None
Encryption	Options include AES, DES and ADP
Battery	Lithium-ion options available
Intended Use	Professional / public safety / commercial communications

Specifications can vary by exact model, flashcode, software package and configuration.

Ideal Applications

The Motorola APX 7000 can be suitable for:

Public Safety • Security • Government • Utilities • Transportation • Industrial Operations • Emergency Response • Large Facilities • Event Operations • Professional Communications

If you need a used Motorola APX 7000 for sale, confirm the required frequency bands and system type before ordering. For P25 trunking systems, programming and system compatibility are especially important.

Need a Specific Configuration?

Tell us the frequency band, model number, flashcode, encryption requirements, display preference and quantity you need. We can help you identify an appropriate APX 7000 configuration.

Related Motorola Radios:
Explore our Motorola APX radios, Motorola MOTOTRBO radios, and other used Motorola two-way radios for additional options.

Manufacturer Information

For official specifications and product information, see Motorola Solutions – APX 7000 documentation and Motorola Solutions – APX 7000 product information.

Note: The APX 7000 has been discontinued by Motorola, although accessories, software and services may still be available. This makes properly tested used units an important option for organizations maintaining existing APX 7000 fleets.
