$1,950.00Original price was: $1,950.00.$1,359.00Current price is: $1,359.00.
The Motorola MTR2000 UHF Repeater 435-470 MHz 100 Watts delivers powerful, reliable conventional analog communication with flexible channel spacing and a compact 3U rack-mount design for professional radio systems.
The Motorola MTR2000 UHF Repeater 435-470 MHz 100 Watts is a professional-grade radio repeater designed for organizations that need reliable UHF communications and efficient use of equipment-site space.
With a maximum output of 100 watts, programmable channel spacing and a compact rack-mount design, the MTR2000 provides a flexible platform for conventional analog radio systems.
Its software-based architecture was designed to provide flexibility for changing system requirements, while the compact 3U chassis helps organizations make better use of valuable communications-site space.
For businesses, industrial facilities, security teams, utilities and other organizations maintaining compatible UHF radio networks, the MTR2000 can provide a practical way to extend and centralize radio communications.

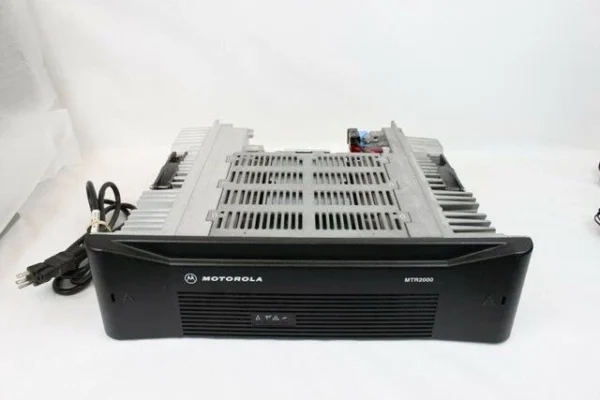

Motorola MTR2000 UHF Repeater 435-470 MHz
The MTR2000 UHF Repeater operates in the 435-470 MHz UHF frequency range and is configured as a high-power repeater with up to 100 watts of output.
A repeater receives a transmission from a compatible radio and retransmits it from a fixed location, helping radio users communicate over greater distances or across areas where direct radio-to-radio communication may be limited.
This can be especially useful in:
Large industrial facilities
Warehouses
Manufacturing sites
Security operations
Transportation facilities
Construction sites
Commercial properties
Utilities
Rural operations
Large campuses
Professional two-way radio networks
The actual coverage achieved depends on factors such as antenna height, antenna gain, terrain, buildings, cable loss, frequency coordination and local RF conditions.
100-Watt UHF Repeater Performance
One of the defining characteristics of this configuration is its 100-watt UHF output capability.
Higher transmitter power can be useful for fixed-site radio infrastructure where greater RF output is required, although output power alone does not determine coverage.
A properly engineered repeater installation should consider the entire RF system, including:
Repeater output power
Antenna height
Antenna gain
Duplexer
Coaxial cable
Connectors
Site elevation
Terrain
Building construction
Frequency coordination
The MTR2000’s high-power configuration makes it suitable for professional fixed-site applications where a robust UHF repeater platform is required.
435-470 MHz UHF Frequency Range
This Motorola MTR2000 configuration is designed for the 435-470 MHz UHF range.
UHF radio systems are commonly used in commercial and professional environments where reliable communications are needed around buildings and developed areas.
Before ordering, always verify the exact frequency requirements of your radio system and confirm that the repeater configuration is compatible with your existing radios and RF equipment.
Frequency licensing and coordination requirements also vary by country and application.
For U.S. customers, the Federal Communications Commission provides information about radio services and licensing.
The MTR2000 supports analog operation in conventional radio systems, making it relevant for organizations maintaining compatible analog two-way radio networks.
This can be particularly useful for customers who already have a fleet of compatible analog UHF portable or mobile radios and need to maintain their existing communications infrastructure.
If your organization is transitioning to digital radio, it is important to verify the system requirements before selecting an MTR2000. The MTR2000 should not automatically be treated as a replacement for newer digital MOTOTRBO repeaters.
For customers looking for modern Motorola digital infrastructure, consider our Motorola MOTOTRBO Repeater options, including the Motorola SLR 1000 and Motorola SLR 5700.
Compact 3U Rack-Mount Design
The MTR2000 was designed with a compact chassis measuring approximately 3 rack units (3U), or about 5.25 inches / 13.3 cm in height.
For communications sites where rack space is expensive, a compact design can make installation and equipment-room planning easier.
The standard EIA 19-inch rack-mount configuration allows the repeater to integrate into compatible professional communications racks.
Its approximate weight is 40 lb / 19 kg, making it relatively manageable for professional rack-mounted equipment.
Programmable Channel Spacing
The Motorola MTR2000 supports programmable channel spacing configurations, including 12.5 kHz and 25/30 kHz options depending on the specific configuration.
This flexibility can make the repeater useful across different conventional radio-system requirements.
However, the exact programming and operating parameters should be verified before deployment.
Your radio technician should confirm:
Operating frequency
Transmit frequency
Receive frequency
Channel spacing
CTCSS/DPL requirements
Transmitter power
Repeater offset
Antenna system
Duplexer configuration
Software-Based Design
The MTR2000 uses a software-based architecture intended to provide flexibility for changing system applications.
This approach can be valuable for organizations that need to configure radio infrastructure around specific operational requirements rather than relying on a single fixed configuration.
The exact capabilities available on an individual unit depend on its hardware, software and programming.
For that reason, customers should verify the configuration of the specific repeater before ordering.
Motorola MTR2000 Repeater for Professional Radio Networks
The MTR2000 is designed for fixed-site professional communications rather than consumer radio applications.
A properly installed repeater can provide a central communications point for radio users operating across a facility, campus or geographic area.
Typical applications include:
Security
Security personnel can communicate with dispatch and other team members across large properties.
Industrial Operations
Manufacturing plants and industrial facilities can use fixed-site radio infrastructure to connect teams working in different areas.
Warehousing
A centrally located repeater can help radio users maintain communications across large warehouse environments.
Transportation
Transportation teams can use professional radio networks to coordinate drivers, dispatchers and field personnel.
Utilities
Field technicians and dispatch teams can use compatible radio networks to communicate across larger service areas.
Construction
A fixed repeater can help maintain communications across large or difficult job sites when the radio system is properly engineered.
Motorola MTR2000 Specifications
Feature
Motorola MTR2000 UHF
Product type
Professional UHF repeater
Model
MTR2000
Frequency range
435-470 MHz
Maximum output
100 watts
Operation
Conventional analog
Channel spacing
12.5 or 25/30 kHz programmable
Rack configuration
Standard EIA 19-inch
Chassis height
3U / approximately 5.25 in (13.3 cm)
Approx. weight
40 lb / 19 kg
Design
Software-based
Application
Professional fixed-site radio systems
Note: Specifications can vary by exact MTR2000 configuration. Confirm the specific unit’s programming, hardware and frequency configuration before ordering.
MTR2000 Variable Power Configurations
Motorola designed the MTR2000 platform with several variable-power configurations.
For UHF, the platform includes configurations such as:
100-25 watts
40-2 watts
30-2 watts
This provides flexibility when designing a radio system around different coverage and installation requirements.
The product featured on this page is the 435-470 MHz 100-watt configuration, subject to the exact equipment configuration available.
MTR2000 vs Modern Motorola SLR Repeaters
The MTR2000 and newer Motorola SLR repeaters serve different generations of radio infrastructure.
MTR2000
Best suited for:
Legacy professional radio networks
Conventional analog systems
Existing compatible UHF infrastructure
Customers maintaining established radio installations
High-power fixed-site applications
Motorola SLR 1000
A more modern, compact repeater platform designed for MOTOTRBO systems.
Motorola SLR 5700
A modern MOTOTRBO repeater intended for professional digital radio infrastructure and higher-capacity applications.
If you are replacing an existing MTR2000, the correct replacement depends on your radio fleet, frequency requirements, digital/analog system architecture and desired capabilities.
Used Motorola MTR2000 UHF Repeater
A used Motorola MTR2000 UHF Repeater can be a cost-effective option for organizations maintaining an existing compatible radio network.
Before purchasing used repeater equipment, we recommend verifying:
Exact frequency range
Output power
Hardware configuration
Programming
Physical condition
Transmitter performance
Receiver sensitivity
Required accessories
Duplexer compatibility
Power requirements
A used repeater should be evaluated as part of the complete RF system rather than as an isolated piece of equipment.
What You Need for a Complete Repeater Installation
The repeater itself is only one part of a professional radio installation.
Depending on the application, you may also need:
UHF antenna
Duplexer
Antenna cable
Lightning protection
RF connectors
Rack or equipment cabinet
Power supply
Backup power
Grounding
Frequency coordination
Radio programming
The correct antenna and RF system can have a significant impact on the performance and coverage of a repeater.
Is the Motorola MTR2000 Right for Your Radio System?
The MTR2000 can be a strong choice if you are maintaining a compatible 435-470 MHz conventional UHF radio network and need a high-power fixed-site repeater.
It is particularly attractive when:
You already have compatible Motorola radios
Your system uses conventional analog operation
You need up to 100 watts of UHF output
You require a rack-mounted repeater
You want programmable channel spacing
You are maintaining an existing radio infrastructure
If you are building a new digital radio network, however, you may want to consider a modern MOTOTRBO repeater instead.
Frequently Asked Questions
What frequency does the Motorola MTR2000 UHF repeater operate on?
This configuration operates in the 435-470 MHz UHF range.
How much power does the MTR2000 UHF repeater provide?
This configuration supports up to 100 watts of output power.
Is the MTR2000 a digital repeater?
The configuration described on this page is intended for conventional analog operation. Customers requiring modern digital MOTOTRBO functionality should evaluate a current-generation Motorola digital repeater.
What channel spacing does the MTR2000 support?
The platform supports programmable 12.5 kHz and 25/30 kHz channel spacing, depending on configuration.
Does the MTR2000 fit a standard communications rack?
Yes. The MTR2000 uses a standard 19-inch EIA rack-mount configuration and has a compact 3U chassis.
Is the MTR2000 still useful?
Yes, particularly for organizations maintaining compatible legacy professional radio systems. Its suitability depends on your existing radios, frequencies, programming and system requirements.
Can the MTR2000 be used with any UHF radio?
No. Radio compatibility depends on frequency, channel configuration, signaling, programming and system architecture.
Always verify compatibility before deployment.
Keep Your UHF Radio Network Connected
The Motorola MTR2000 UHF Repeater 435-470 MHz 100 Watts remains a practical option for organizations that need a high-power, rack-mounted repeater for a compatible conventional analog UHF radio network.
With up to 100 watts of output, programmable channel spacing, a compact 3U chassis and standard 19-inch rack mounting, the MTR2000 offers the flexibility needed for many professional fixed-site communications applications.
For customers maintaining an existing Motorola UHF network, this repeater can provide a practical way to support reliable communications without unnecessarily replacing an entire radio system.
If you’re upgrading to a modern digital network, explore our Motorola MOTOTRBO repeaters and related Motorola radio equipment.to:
