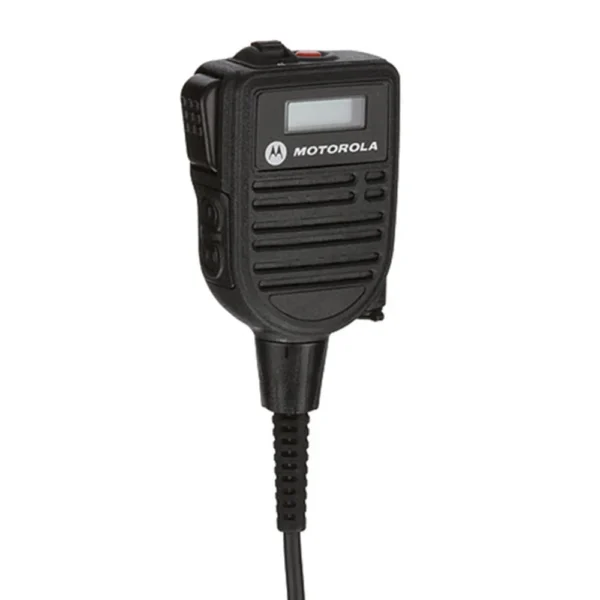

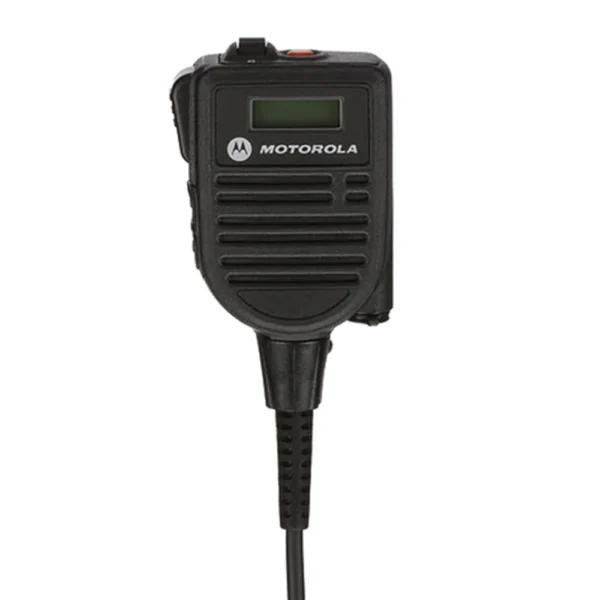

The Motorola HMN4103B Remote Speaker Microphone is a rugged IMPRES audio accessory designed for compatible Motorola APX portable radios. It gives users convenient push-to-talk communication without having to reach for the radio, while its integrated display provides useful radio information at a glance.
Designed for demanding professional environments, the HMN4103B combines IMPRES audio, Windporting technology, an 8-character display, volume control, programmable buttons and an orange emergency button in a durable remote speaker microphone.
The HMN4103B is particularly useful for public safety, security, utilities, industrial, transportation and other professional radio users who need reliable communication while keeping their portable radio secured on a belt or vest.
Clear, Practical Audio for Professional Radio Users
The HMN4103B uses Motorola’s IMPRES audio technology and a large speaker designed to provide clear and intelligible communications. Motorola states that its APX RSM design can deliver audio that is clearer and up to 50% louder than comparable XTS-series RSMs.
Its Windporting design helps reduce the effects of wind and severe weather on transmit audio, making the microphone well suited to outdoor and demanding working environments.
8-Character Display for At-a-Glance Information
One of the biggest advantages of the HMN4103B display remote speaker microphone is its integrated 8-character display.
The display mirrors information from the compatible radio’s top display, allowing users to see important zone and channel information without having to remove or look directly at the portable radio.
This can be especially convenient when the radio is attached to a belt, tactical vest, duty gear or other equipment where accessing the radio itself may be inconvenient.
HMN4103B Display vs. HMN4101B Non-Display
Motorola’s APX accessory documentation distinguishes the two configurations:
Feature
HMN4103B
HMN4101B
Display
Yes
No
IMPRES audio
Yes
Yes
Remote speaker microphone
Yes
Yes
Volume control
Yes
Yes
Orange emergency button
Yes
Yes
Programmable buttons
Yes
Yes
Submersible audio jack
Yes
Yes
Windporting
Yes
Yes
Channel selection knob
No
No
The HMN4103B is the display model, while the HMN4101B is the corresponding non-display option. Motorola’s documentation also identifies the HMN4104B as the display RSM with a channel-selection knob.
This distinction is important when ordering a replacement Motorola APX speaker microphone because the display and channel-control requirements can vary by user and radio configuration.
Rugged Design for Demanding Environments
The HMN4103B was designed as a rugged, submersible remote speaker microphone. Motorola documentation identifies the HMN4103 family as meeting rugged specifications for submersibility and featuring a rugged submersible audio connector.
The microphone also includes a swivel clip and quick-disconnect design, making it practical for attaching to professional clothing, duty gear or equipment. Its larger housing is designed to remain easy to operate, including when users are wearing gloves.
Convenient Controls
The Motorola HMN4103B places frequently used controls within easy reach, including:
Push-to-talk (PTT) button
Radio volume control
Two programmable buttons
Orange emergency button
8-character display
IMPRES audio
Windporting
Rugged submersible audio jack
The orange button can be configured for an emergency function on compatible radio systems, while the programmable buttons can provide quick access to supported radio features.
Compatible Motorola APX Radios
The HMN4103B is associated with a broad range of Motorola APX portable radios. Motorola documentation identifies the display RSM with jack as an accessory for the APX 8000XE, and accessory references list compatibility across APX portable families.
Commonly listed compatible radio families include:
Motorola APX 3000
Motorola APX 4000
Motorola APX 6000
Motorola APX 6000XE
Motorola APX 7000
Motorola APX 7000XE
Motorola APX 8000
Motorola APX 8000XE
Motorola APX 900
Motorola SRX 2200
Always verify the exact radio model, firmware/configuration and connector requirements before ordering, especially when replacing an older Motorola RSM.
Display function: Mirrors compatible radio information such as zone and channel
Audio: IMPRES audio
Windporting: Yes
Volume control: Yes
Programmable buttons: 2
Emergency button: Orange programmable button
PTT: Yes
Audio connector: Rugged submersible connector
Submersible: Yes
Channel selection knob: No
Intrinsic safety: FM-listed configuration
Compatible radio family: Selected Motorola APX and SRX portable radios, depending on configuration
Why Choose the Motorola HMN4103B?
If you already use a compatible Motorola APX portable radio, the HMN4103B can be a valuable upgrade or replacement accessory when you want remote PTT control, clear audio and convenient access to channel information.
The integrated display is particularly useful for users who keep their radio attached to a vest, belt or other duty equipment. Instead of reaching for the radio to check basic zone and channel information, the user can view it directly on the RSM.
For customers who do not need a display, the HMN4101B non-display RSM is the alternative configuration to consider. If channel selection directly from the microphone is important, the HMN4104B is the appropriate related configuration to investigate.
Ideal Applications
The Motorola HMN4103B can be suitable for:
Public safety and emergency response
Police and security operations
Fire and emergency services
Utilities and field service
Transportation
Industrial operations
Event and facility security
Government communications
Professional Motorola APX radio systems
Important Compatibility Note
Motorola accessory compatibility can depend on the exact radio model and configuration. Before ordering, confirm that HMN4103B is compatible with your specific APX or SRX portable radio.
For used or pre-owned HMN4103B units, condition can also vary. Buyers should verify the display, PTT button, audio, cable/connector, programmable controls and mounting clip before purchase.
